Sliding Room Dividers - Installation

Please contact us for a specific quote for your project.

SA-Details | Color Options | Installation Details

SA-Details

The SA-series sliding room divider is designed for use as a movable partition that can divide a room in minutes.

The differences between SA-1000, SA-1200, and SA1500 Sliding Room Dividers

The SA-1000 panel core is two 3/8” thick gypsum boards placed back to back. The facing materials are tackable acoustical fabrics.
This makes the SA-1000 very economical. The height limit is 10’.

The SA-1200 panel core is a 1” thick 4.7# stiff fiberglass board. The facing materials are FRP Structoglas plastic washable boards.
**This makes the SA-1200 a good product for clean rooms, cafeterias and other applications where sanitation is important. The height limit is 14’.

The SA-1500 panel core is a 3/4” honeycomb material sandwiched between two 24 gauge galvanized steel sheets. The facing materials are acoustical fabrics.
This makes the SA-1500 better at reducing noise transfer, very ridged and yet lighter in weight. The height limit is 14’ feet.

All of the SA-series sliding dividers have the same maintenance free clear anodized aluminum frame, track and wall seal angles.

Color Options

CRYSTAL AND BROCADE ARE OUR STOCK COLORS. REMAINING COLORS ARE AN ADDITIONAL $0.35 per Sq Ft.

Installation Details

Unlike the competitor’s room dividers that require heavy beams or bracing in the ceiling, this system is floor supported and requires no additional bracing.

In fact the lightweight top guide track can mount directly to a suspended ceiling.

The SA-series bottom track comes in sections that are easily installed and removed.

When the divider is not being used there is nothing on the floor.

The bottom tracks can be stored vertically between the stacked panels and the wall as shown below.

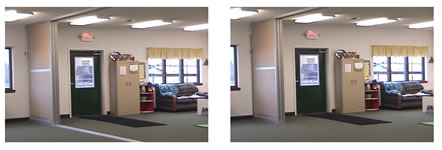

The SA-series is made up of individual panels that slide across a room in a stair step configuration.

Each panel is automatically positioned by bumper stops in the tracks. When they are in position and overlap one another, a built in edge seal compresses between the panels and seals them for sound.

Please contact us for a specific quote for your project.
